主要功能
ㆍ热敏打印技术: 采用热敏打印方式,无需墨水或碳粉,打印清晰且维护成本低。
ㆍ高分辨率打印: 9×320点阵打印头,支持高分辨率文字和图形打印。
ㆍ快速打印速度: 最大打印速度可达52.5字符/秒,适合快速输出数据。
ㆍ多种字符集支持: 支持扩展图形字符集、字母数字字符、国际字符及片假名字符集。
ㆍ便携式设计: 尺寸为160.0×170.0×66.5毫米,重量约580克(不含电池),便于携带和安装。
ㆍ多种电源选项: 可选配交流适配器或镍氢电池,适合不同使用场景。
ㆍ串行和并行接口: 支持串行(9针D-SUB)和并行(36针Amphenol)接口,兼容性强。
ㆍ高耐用性: 打印寿命可达50万行,适合高频率使用。
ㆍ撕纸条设计: 配备撕纸条,方便快速撕取打印纸张。
ㆍ国际通信标准: 符合FCC、CE、VCCI、CCC等国际认证,确保产品质量和安全性。
ㆍ适用于多种场景: 适用于医疗设备、测量仪器、工业现场及船舶等专业场景。
Parameters | |
Brand | OCEAN ONE |
Model | DPU-614 |
Method | Thermal serial dot printing |
Number of dots/line (H x W) | 9×320 |
Paper width (mm) | 112-1 +0 |
Printing width (mm) | 89.6 |
Speed (character/sec)max | 52.5 |
Character matrix (HxW dots) | 9×7 |
Character size (H xW mm) | 2.5×1.9, 2.5×0.9(Condensed) |
Number of columns | 40, 80(Condensed) |
Character type | Extended graphics character set, Alphanumeric, International charactres, Katakana character set |
Power supply | Option: Specified AC adapter, Ni-MH battery |
Power supply | Option: Specified AC adapter, Ni-MH battery |
Battery | Without (option) |

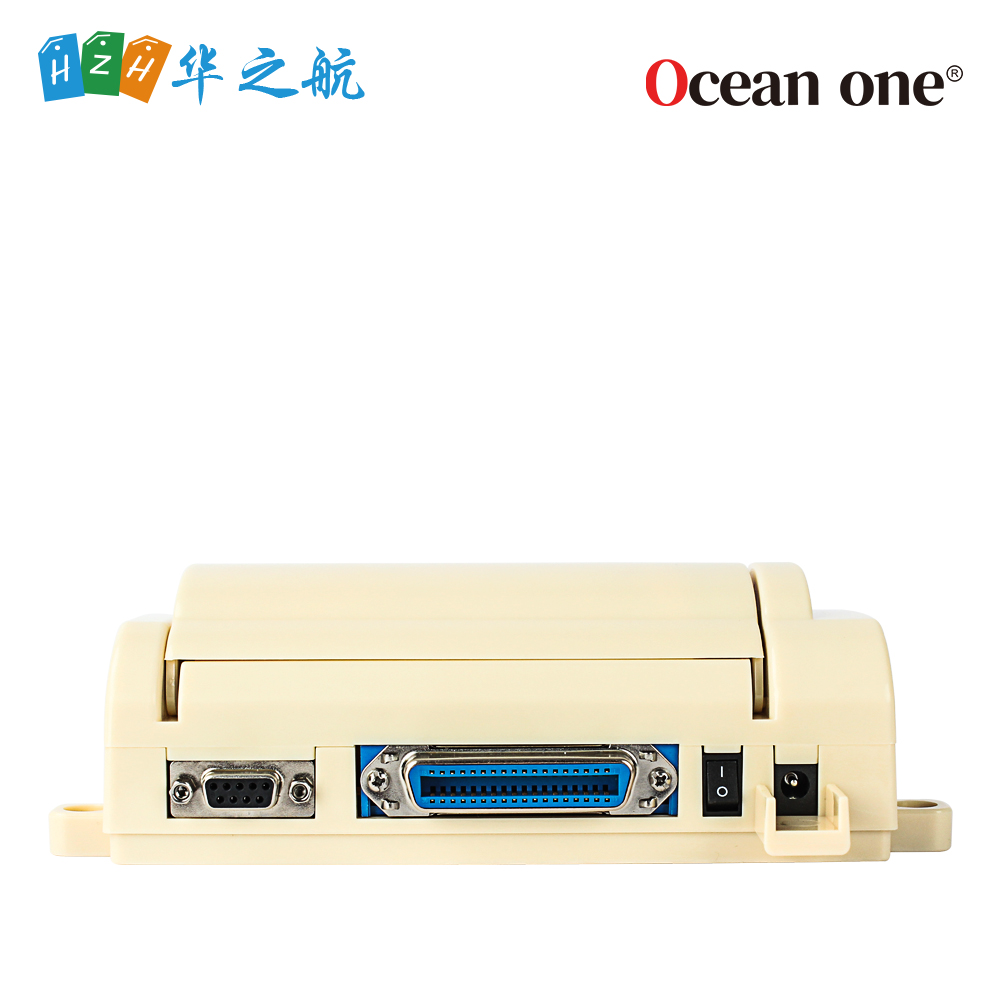

Communication interface | Parallel (36pins Amphenol), Serial (9pins D-SUB) |
Input buffer | 28K bytes |
Command | ESC/PTM conformity |
Cutting | Tear bar |
Operating temperature (℃) | 0 to 40 |
Service life (line) | 500,000*1 |
Dimensions (W x D x Hmm) | 160.0×170.0×66.5 (printer unit only)*2 |
Mass (g) | Approx.580 (without Battery) |
Option | AC adapter, Battery |

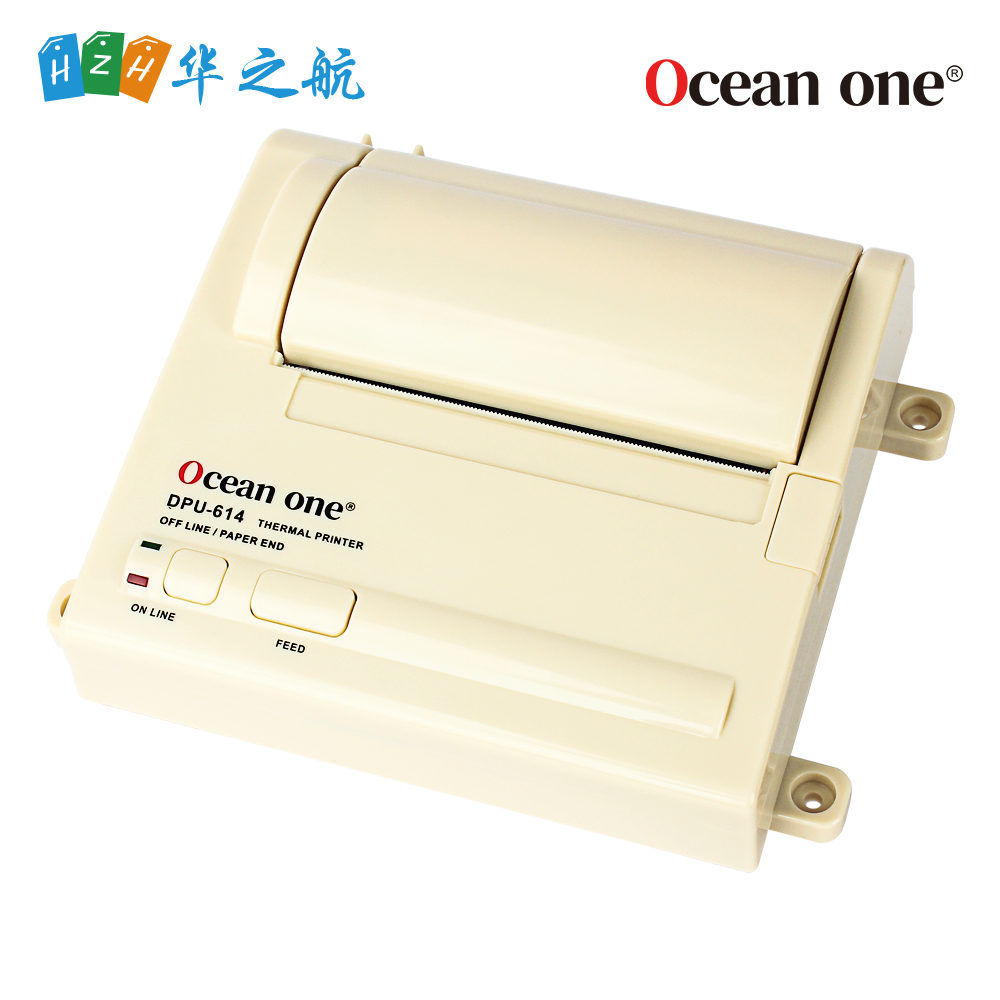

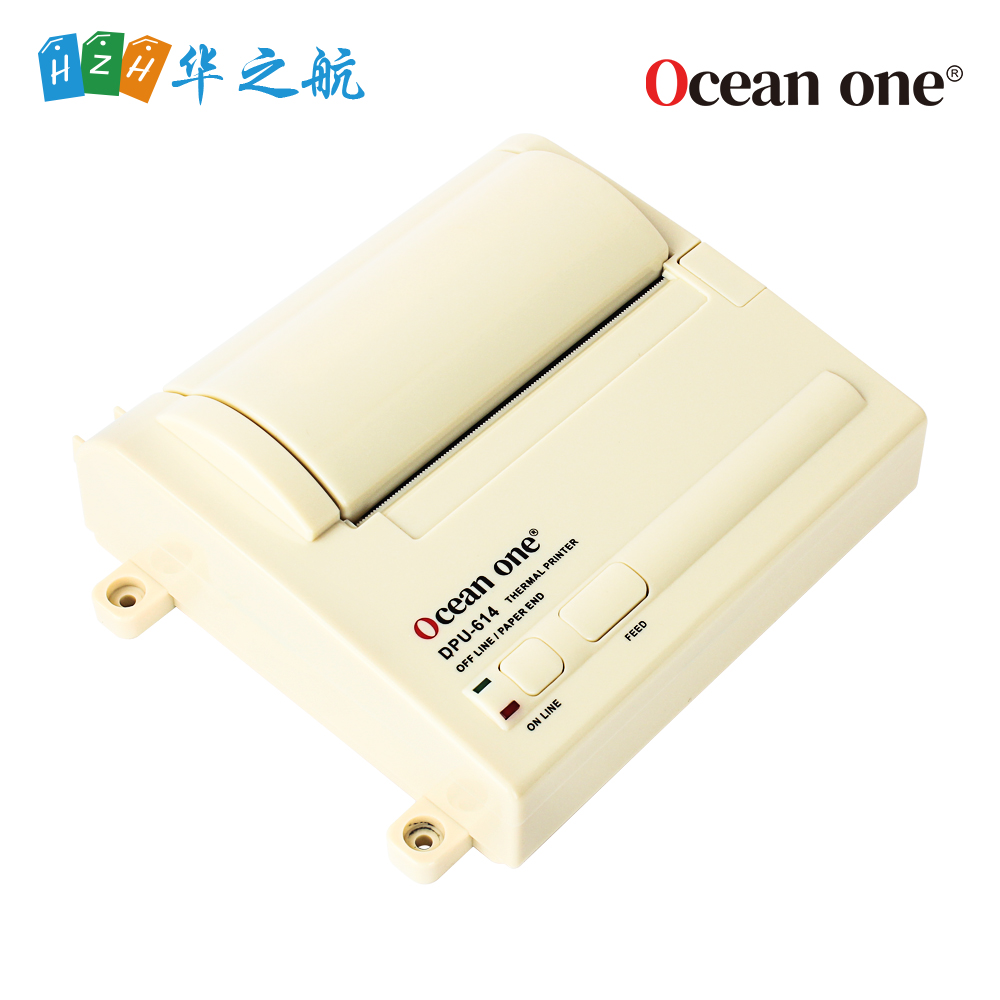

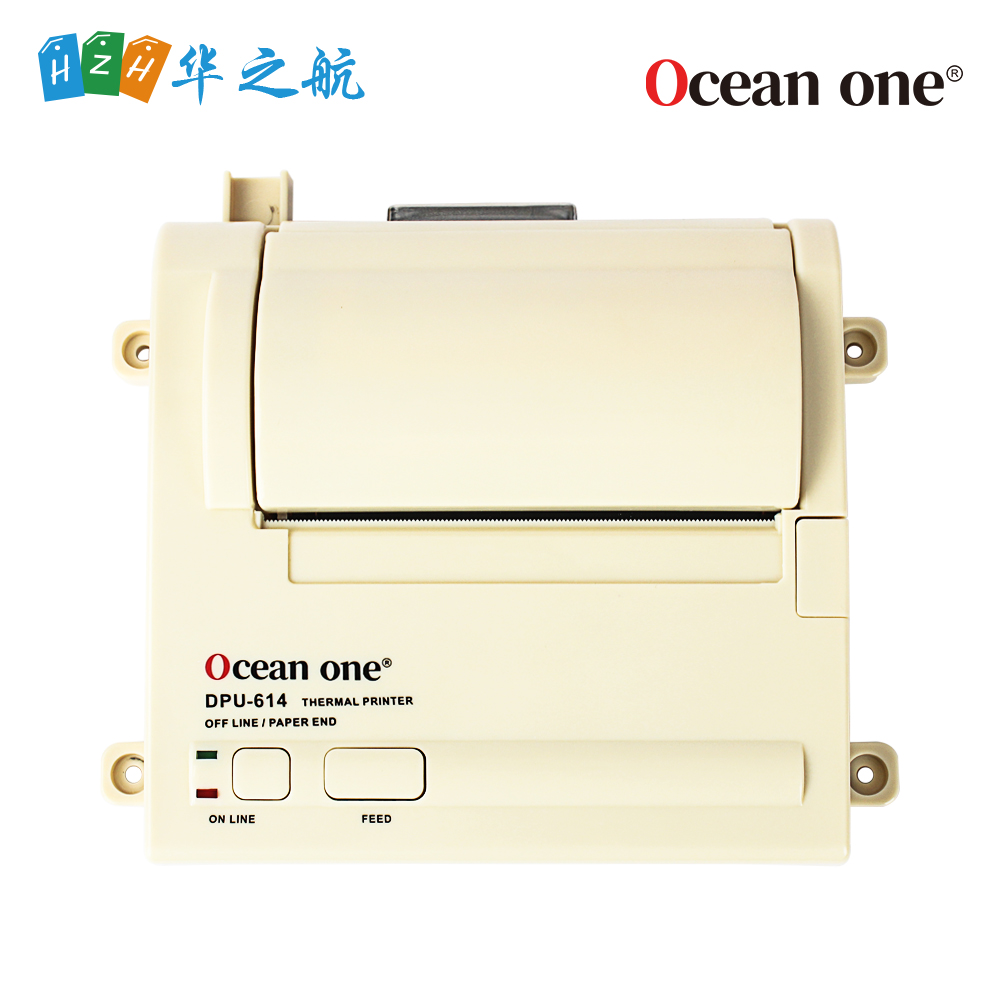

打印机 DPU-614
